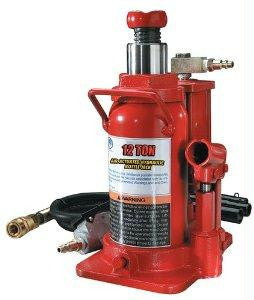

12 Ton Air Actuated Bottle Jack
ATD-7412
12-Ton Air Actuated Bottle Jack
Heat-treated extension screw adjusts to accommodate work height
Cast iron base with release valve for controlled lowering
Steel cap, grooved for load gripping power
Wide stance for stability
3-piece handle
Built-in bypass mechanism
Equipped with a powerful air motor to raise load efficiently and safely to desired height
Meets ASME/ANSI-PALD Safety Standards
Recommended Air Supply: 110-175 psi @ 7.8 CFM
12-Ton Air Actuated Bottle Jack
Heat-treated extension screw adjusts to accommodate work height
Cast iron base with release valve for controlled lowering
Steel cap, grooved for load gripping power
Wide stance for stability
3-piece handle
Built-in bypass mechanism
Equipped with a powerful air motor to raise load efficiently and safely to desired height
Meets ASME/ANSI-PALD Safety Standards
Recommended Air Supply: 110-175 psi @ 7.8 CFM
Capacity (Ton): 12
Minimum Height: 9-1/2"
Maximum Height: 18-5/8"
Hydraulic Lifting: 6"
Extension Screw: 3-1/8"
Base Length: 8-7/8"
Base Width: 5-3/4"
Shipping Weight: 29 lbs.
