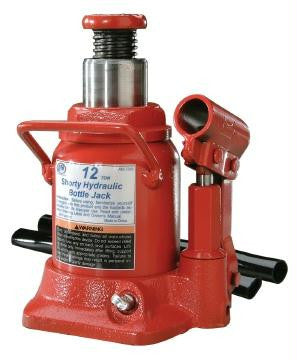

12 Ton Shorty Bottle Jack
ATD-7385
12-Ton Heavy-Duty Hydraulic Side Pump Bottle Jack (Shorty Version)
Hydraulic system is protected from internal damage by a patented bypass mechanism
Machined and polished cylinders with die-cut threads provide non-abrasive, leak-free, durable performance
Fabricated from hard-cast steel with heat-treated critical stress areas
Unique cross-type forged release valve assures positive control
A wide, rugged base provides stability and strength
Jack can be used in vertical or angled 5˚ from vertical position
12-Ton Heavy-Duty Hydraulic Side Pump Bottle Jack (Shorty Version)
Hydraulic system is protected from internal damage by a patented bypass mechanism
Machined and polished cylinders with die-cut threads provide non-abrasive, leak-free, durable performance
Fabricated from hard-cast steel with heat-treated critical stress areas
Unique cross-type forged release valve assures positive control
A wide, rugged base provides stability and strength
Jack can be used in vertical or angled 5˚ from vertical position
Capacity (Ton): 12
Minimum Height: 6"
Maximum Height: 10-5/8"
Hydraulic Lifting: 3"
Extension Screw: 1-5/8"
Base Length: 5-1/4"
Base Width: 5-1/8"
Shipping Weight: 14 lbs.
Meets ASME/ANSI-PALD Safety Standards
