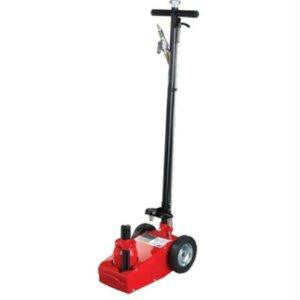

22 Ton Air-Hydraulic Jack
22-Ton Heavy-Duty Air/Hydraulic Actuated Single Stage Truck Jack
Meets ASME/ANSI-PALD Safety Standards
A choice of (3) handle angles:
90˚ - For space saving storage
45˚ - For easy carrying movement
0˚ - For access to lifting point
Heat-treated extension screw allows low pick-up height adjustment and maximum lift height
U.S. Patented built-in bypass device protects hydraulic system from over pumping damage
Hard rubber tires on steel wheels for easy positioning and smooth motion
Sturdy 1-piece handle assembly
Chrome plated ram
Uses standard shop air - 110-175 psi pressure required
User-friendly, self-returning spring minimizes operator's effort, greatly reducing fatigue
Inline air filter traps contaminates and protects air motor for longer life
1" and 2-1/2" adapters included
Capacity (Ton): 22
Minimum Height: 9-7/8"
Maximum Height: 22" (with adapter)
Extension Screw: 3-7/8"
Handle Length: 48-3/4"
Size: 22-7/8" L x 13-3/4" W
Shipping Weight: 98 lbs.
